Edward Roberts' notes and diagrams

From: Forge Sound

This diagram of structure of Forge Sound is taken from page 6 of Edward Roberts' book Hampshire Houses 1250 - 1700.

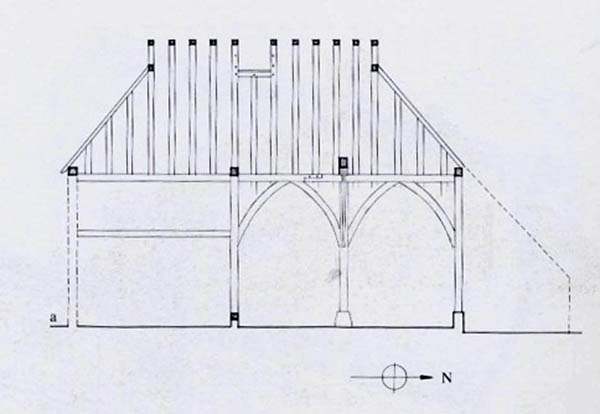

Sketch of the long section of the cottage.

Sketches of the framework of Forge Sound

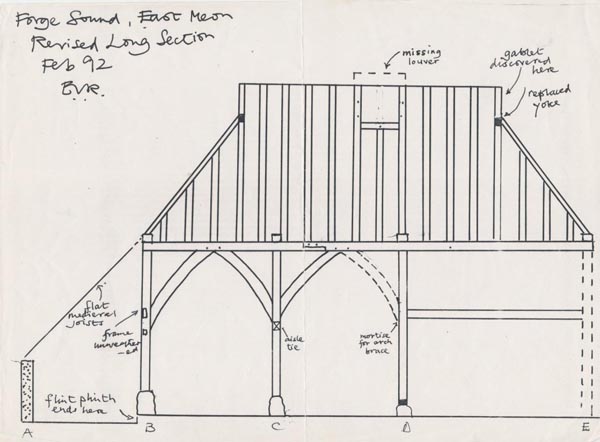

Long section showing the 'semi aisle' to the north of the cottage.

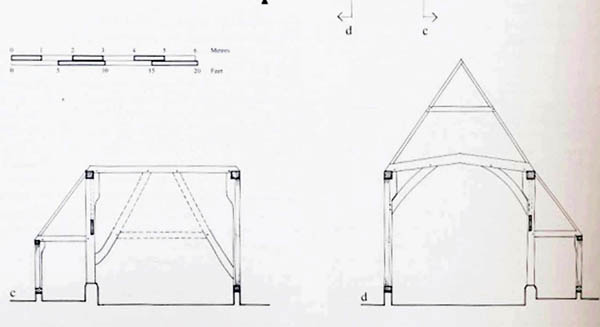

Sketch of the box frame of the cottage.

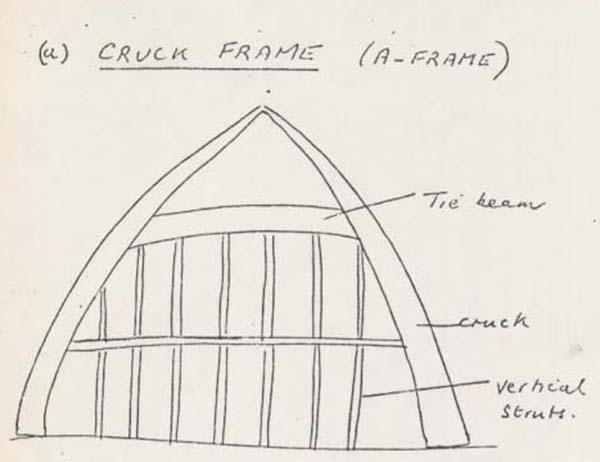

Sketch of the cruck frame.

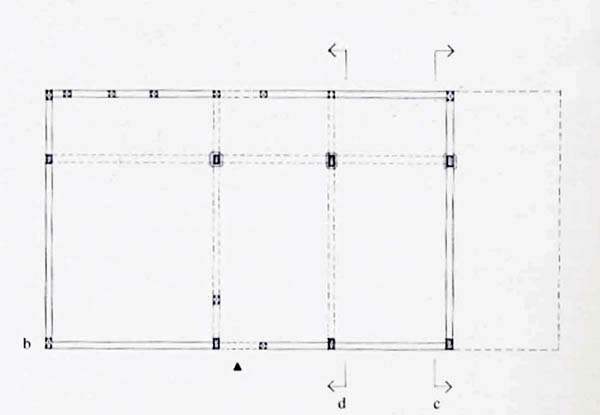

Plan of Forge Sound

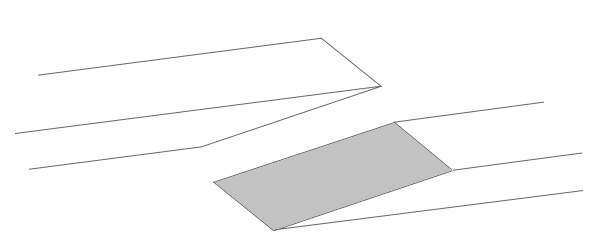

Diagram of the scarf joint, of which a photograph is shown in 'Forge Sound in 2012'.

The cover of Hampshire Houses 1250 - 1700

The architectural historian Edward Roberts has studied Forge Sound and made extensive sketches and diagrams. He describes it in his book ”Hampshire Houses 1250 – 1700, published by Hampshire County Council. These sketches and diagrams are reproduced with his kind permission.

Creator

Edward Roberts

Date of creation

1992

Date of coverage

1300 - 1350

Place

East Meon, Forge Sound

Contributor

Edward Roberts

Copyright

Edward Roberts

Reference number

EM/0032/0003

Storage location

Tony Perkins has the original sketches.

Format

Pencil sketches and diagrams
